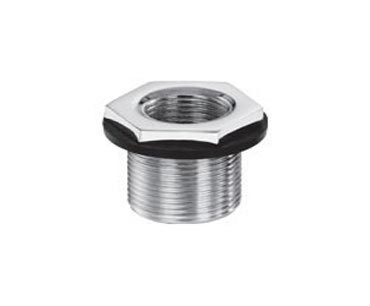

MCI Reducers effectively reduce the threaded entry diameter of an enclosure to accept a gland or fitting with a smaller thread. The range covers two design types.
| Material: | Brass (IS-319)Standard (AI./ M.S / S.S.also available)
|
| Plating : | Nickle Plated - Standard
(Chrome also available) |
| Threads : | BSC - Standard
(PG / Metric / NPT / BSP also available) |
| Sealing Rubber Ring: | Neoprene
|
| Ref. Standard: | IS 2148 : 2004
|
| Ingress Protection: |
IP 65 as per IS 12063 - 1987
|
| Test Certi. No.: |
CMRI / TC / P / H788
|
| Application: |
Used in flammable gas vapour area.
(Group I, IIA & IIB) |
| Size (MCR):
|
1" x 3/4", 1 1/4" x 1", 1 1/2" x 1 1/4",
2" x 1 1/2", 2 1/2" x 2" , 3" x 2 1/2" |
